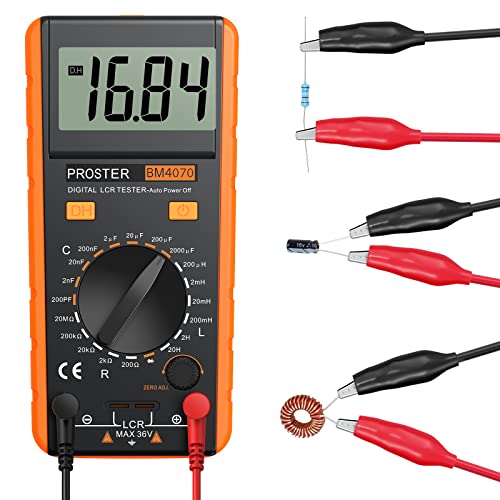

Proster LCR Meter Multimeter Capacitance Inductance Resistance Tester | 200pF-2000μF Capacitance, 200μH-20H Inductance, 200Ω-100kΩ Resistance. Rotatable LCD Data Hold Auto Power Off Zero Adj - color: Yellow

About this item

• High Accuracy LCR Meter - High accuracy measurement of capacitance, resistance, and inductance, it is a special digital instrument which is easy to be operated, the reading accuracydegree is higher with liquid crystal display 3 1/2
• Digital Multimeter Design - (Inductance) Measuring accuracy up to (2%+5); (Capacitance) Measuring accuracy up to (2%+5). Forward voltage drop of diode:Displaty forward voltage drop of diode; Forward voltage of DC:Approx.1mA; Reverse DC voltage: 2.8V

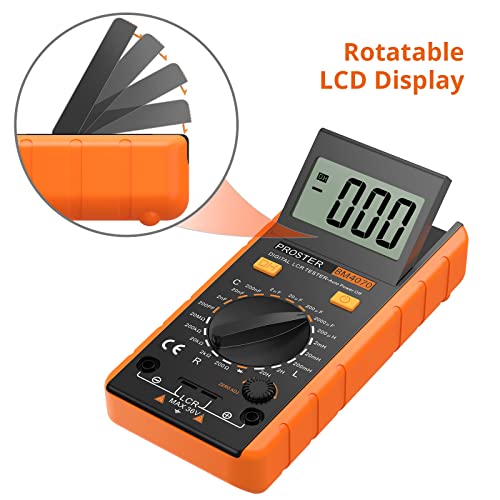

• Rotable LCD Display - Multi angle adjustment for easy reading. No need to hold tester while measuring, more convenient operation. Data hold function helps users to freeze readings on the screen, for convenient recording and analysis of data readings

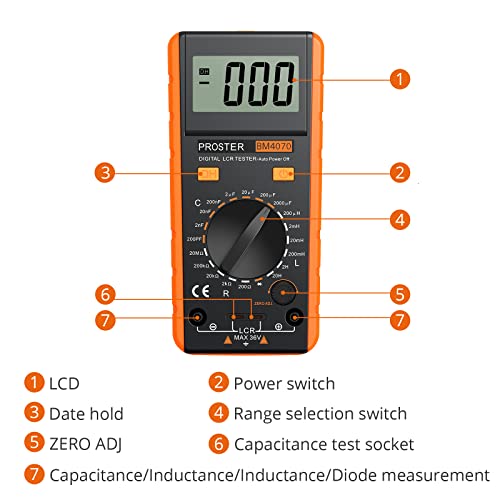

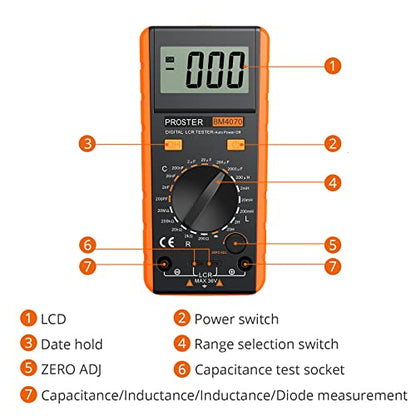

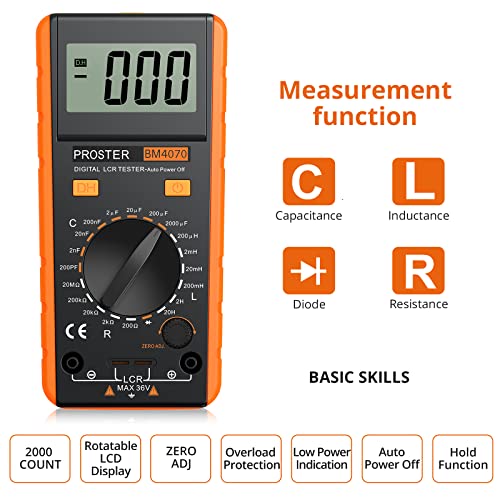

• Easy to Use - Lightweight and compact ; Auto power off; Data Hold function; Low Power Indication; ZERO ADJ for Capacitance

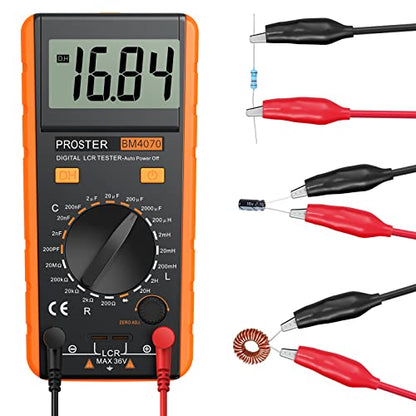

• New Version Test Leads - Comes with crocodile clip/ Test Loads/ mini Alligator Clip; The black pen is connected to the negative pole and the red test lead is connected to the positive pole
• 【Why a Dedicated LCR Meter? – Beyond Standard Multimeters】 Standard multimeters struggle with accurate inductance readings and low-value capacitance. The Proster LCR meter is purpose-built for inductance (L), capacitance (C), and resistance (R) measurements. With 3 1/2 digit LCD (1999 max count) and dual-slope A/D conversion, it delivers reliable readings for component testing, sorting, and troubleshooting

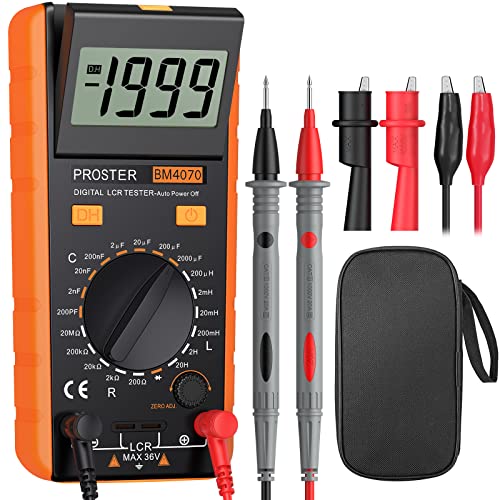

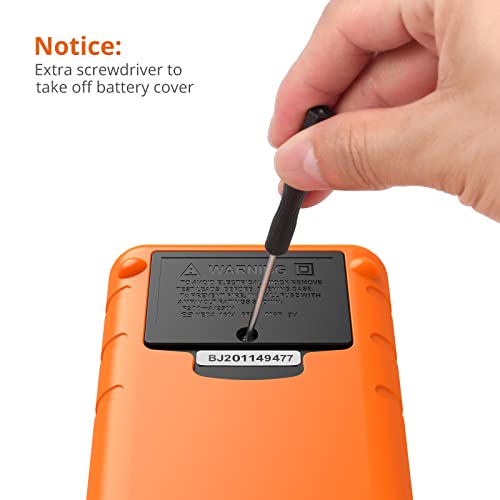

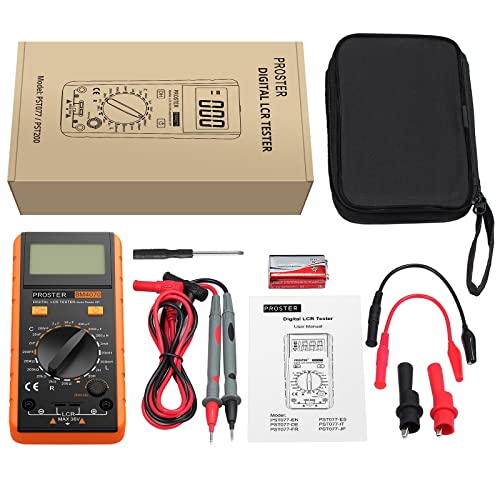

• 【Complete Kit – Ready to Use Out of the Box】 Includes: LCR meter, test leads, crocodile clips, mini screwdriver, 9V battery, user manual, and a portable storage bag. Features data hold, auto power off, and operates on a standard 9V battery. Sampling rate of 3 times per second provides responsive readings. Backed by a 18-months quality guarantee
• 【Wide Capacitance Range – 200pF to 2000μF】 Measure everything from small ceramic discs to large electrolytic capacitors. 8 capacitance ranges: 200pF (0.1pF resolution, ±2.5%), 2nF, 20nF, 200nF, 2μF, 20μF, 200μF, and 2000μF (1μF resolution, ±5.0%). Perfect for identifying unmarked caps, matching pairs, or checking for drift and ESR-related degradation
• 【Inductance Measurement – 200μH to 20H】 Easily test inductors, chokes, transformers, and solenoid coils. 6 inductance ranges: 200μH (0.1μH resolution, ±3.0%), 2mH, 20mH, 200mH, 2H, and 20H (10mH resolution, ±5.0%). Essential for winding your own coils, repairing switch-mode power supplies, or testing crossover network components

Overview

• Brand: Proster
• Power Source: Battery Powered
• Style: LCR Meter
• Color: Yellow
• Item Weight: 590 g
