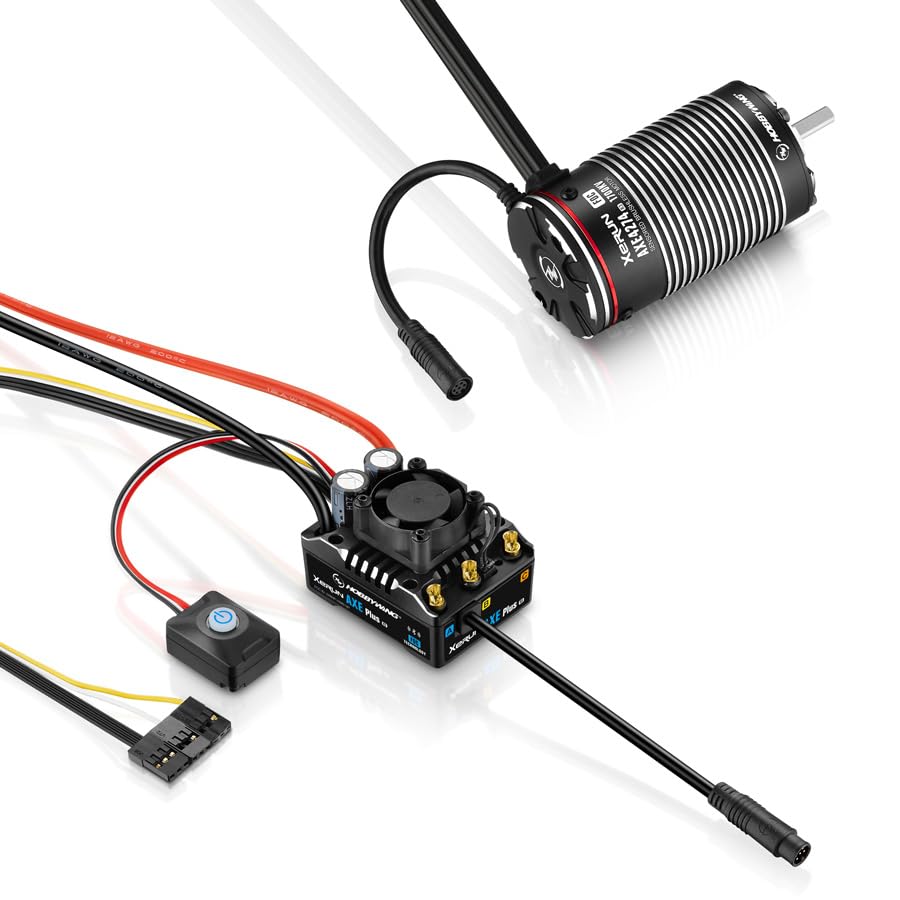

HOBBYWING XERUN Axe R3 Combo (Combo Axe R3 & 4274-1700KV FOC)

HOBBYWING XERUN Axe R3 Combo (Combo Axe R3 & 4274-1700KV FOC)

$355.22 USD
$355.22 USD
Sale Sold out
Taxes included.

About this item

  • XeRun AXE R3 Combo Applications: 1/8th crawler, 1/7th and 1/6th crawler Cont./Peak Current: 135A/600A LiPo Cells: 2-6S Lipo Motor Type: Only the XERUN AXE R3/R2 Series BEC Output: 6V/7.4V/8.4V adjustable, Continuous Current of 6A Size/Weight (including wire): 49.5*37.9*22.8mm(without fan)/126.5g Programming port: iOS or Android smart phone (installed with the HW LINK app)
  • Widely applicable 6S high-power Crawler ESC The ESC supports up to 6S LiPo battery. It has a maximum output current of up to 135A. The AXE R3 can be used on 1/10th and 1/8th crawler, also compatible with 1/7th and 1/6th crawler. New compact design. Compatible with all Axe R2 motors. *Note: The AXE R3 is 2.1mm longer, 1.7mm wider and 3.7mm shorter than the R2 ESC
  • Dual external control channels, Real-time adjustment of parameters Connect the white and yellow signal cables to open channels of the receiver to adjust parameters in real time. Note: The actual functions of the white and yellow wires correspond to the setting parameters of channel 3/4 in the parameter table respectively.
  • Smart torque output, easy to control The ESC automatically increases the torque output to overcome resistance and accelerate up the hill. Vice versa, the ESC automatically reduces the torque output and stabilizes the vehicle speed when going down the hill. Provides excellent control going Up, or Down hills
  • Supports Flysky i-BUS2 protocol Achieve real-time ESC parameter adjustments using the I-BUS2 protocol on the Flysky Noble controllers. Additionally, the data return function has been implemented to the Flysky Noble remote controllers. You will be able to view data such as battery voltage, motor rpm, operating current, ESC/motor temperature, etc in real time on the transmitter.
  • Optional AXE motors AXE R3 ESC supports both AXE 4274 R3 motor and AXE 550/540L/540 R2 motor. *Note: AXER2motor,2800KV/2100KV/1400KV/2300KVarerecommended to use 3-4S.
  • Obtain AXE Running Status with Real-time Data Function with ease Connect the ESC to the HW Link mobile app and turn on the real-time data function. You are able to view throttle, voltage, current, temperature, speed and other data in real time, and obtain the ESC and motor operating status with ease. *Note: Theeffectivedistanceisonlyabout5mduetotransmission distance of bluetooth.

15 in stock

View full details
